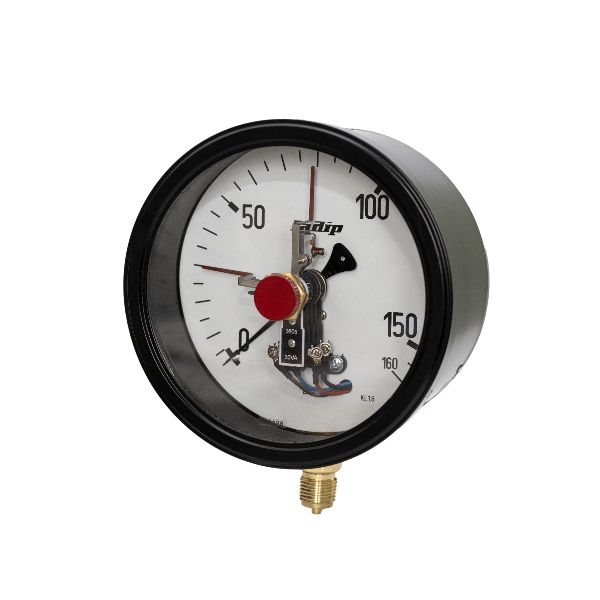

Contact pressure gauge


Suitable for control and regulation non aggressive gaseus and liquid media pressure using in the industry



CONTRSUCTION EN 837-1
NOMINAL SIZES 160 mm
ACCURACY CLASS 1.0%, 1.6%, 2.5%
SCALE RANGE DN160 -1..0..1600 bar
PRESSURE LIMITS 75% of full scale value
short time 1.3x FS value for up to 100 bar
1.15x FS value for above 100 bar
TEMPERATURES ambient -20 ÷ 60 C
medium 60 C
CONNECTION lower mount, brass thread according to inquiry
CASE black powder coated steel or stainless steel
RING AND LENS black plastificated cast aluminium or stainless steel with plexiglass
MEASURING ELEMENT bourdon tube C or Helical type, Cu alloy
MOVEMENT brass
DIAL white aluminium, dial marking black
POINTER black powder coated aluminium
INGRESS PROTECTION IP 54 EN 60529
NOMINAL VOLTAGE 380 VAC/0.7A ili 220 ,24 VAC /6A
CONTACT Magnetic with one or two contacts, and with NO (normally open)
or NC (normally closed)=
MARKING Ø160 G1/2 (0÷10) MKR/A Kl.1,6
ADDITIONAL MARKING -1 pressure gauge with restrictor
/A with two contact
/B with one contact
/PN with flange
/N stainless steel case
