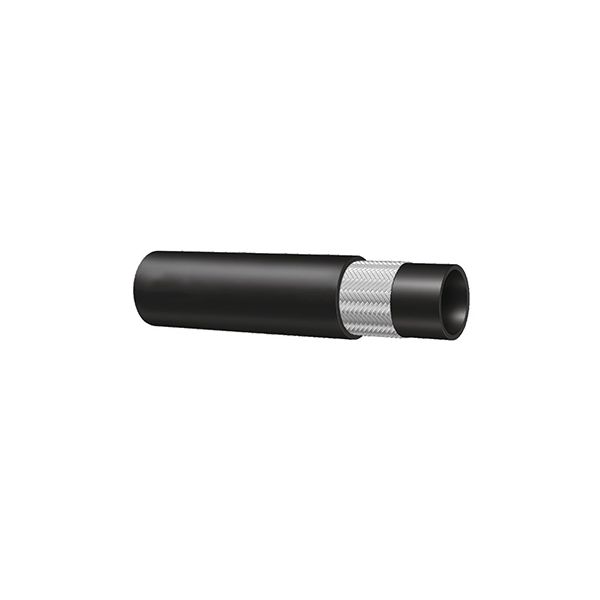

Hydraulic hose EN 854 -2TE

INNER TUBE: black, oil resistant synthetic rubber
REINFORCEMENT: one high tensile textile braid
COVER: black, weather and ozone resistant synthetic rubber
TEMP. OF APPLICATION: -40° C do +100° C with peaks up to +125° C
APPLICATION: medium pressure hydraulic lines, fuel oil, air and water
NP6 NP8 NP10 NP13 NP16 NP20 NP25
Inside diameter (mm) 6.4 7.9 9.5 12.7 15.9 19.0 25.4
Outside diameter (mm) 13.1 14.9 16.5 19.7 23.9 27.0 34.4
Max. working pressure (bar) 75 68 63 58 50 45 40
Min. Bending radius (mm) 40 50 60 70 90 110 150
