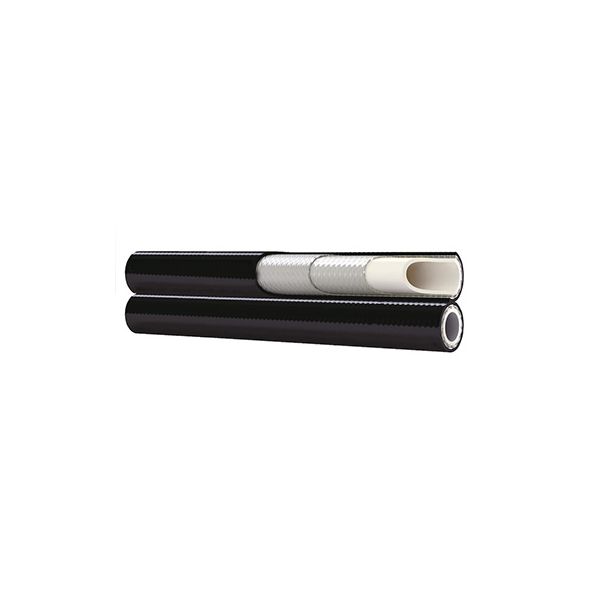

Hydraulic hose SAE 100 R7 – TWIN

INNER TUBE: polyester
REINFORCEMENT: one or two high tensile textile braid
COVER: black, weather and ozone resistant synthetic rubber
TEMP. OF APPLICATION: -40° C to +100° C
APPLICATION: high pressure hydraulic lines, fuel oil, water and air
NP4 NP6 NP8 NP10
Inside diameter (mm) 6.0 8.0 10.0 13.0
Outside diameter (mm) 12.2 14.3 16.0 20.3
Max. working pressure (bar) 210 190 160 140
Min. Bending radius (mm) 35 45 55 75
