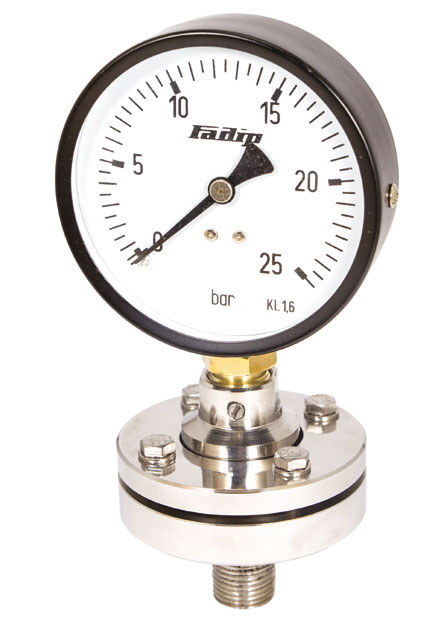

Pressure gauge for viscous and particulates-containing media
 Suitable for measurment viscous and particulated-containing media, with or without glycerine filling |
| CONSTRUCTION | EN 837-3 |
| NOMINAL SIZES | 63, 80,100,160 mm |
| ACCURACY CLASS | 1.6%, 2.5% |
| SCALE RANGE | DN63, DN80 -1..0..40 bar DN100, DN160 -1..0..250 |
| PRESSURE LIMITS | 75% of full scale value short time 1.3x FS value for up to 100 bar 1.15x FS value for above 100 bar |
| TEMPERATURES | ambient -20 ÷ 60 C medium 60 C on special request 150 C |
| CONNECTION | back mount or lower mount, brass thread according to inquiry |
| CASE | black powder coated steel |
| RING AND LENS | plastificated steel with glass, or stainless steel with glass |
| MEASURING ELEMENT | bourdon tube C or Helical type, Cu alloy |
| MOVEMENT | brass |
| DIAL | white aluminium, dial marking black |
| POINTER | black powder coated aluminium |
| INGRESS PROTECTION | IP 32 / IP 54 EN 60529 |
| MARKING | Ø100 R1/2 (0÷40) MRČ (M÷H) Kl.1,6 |
| DIAPHRAGM | elastic membrane between galvanized steel flange |
| FILLING | glycerine, for ambient temperature below 0C -silicone oil |
