Standard Pressure Gauge


Suitable for non aggressive gaseus and liquid media and ambient, using in the industry.

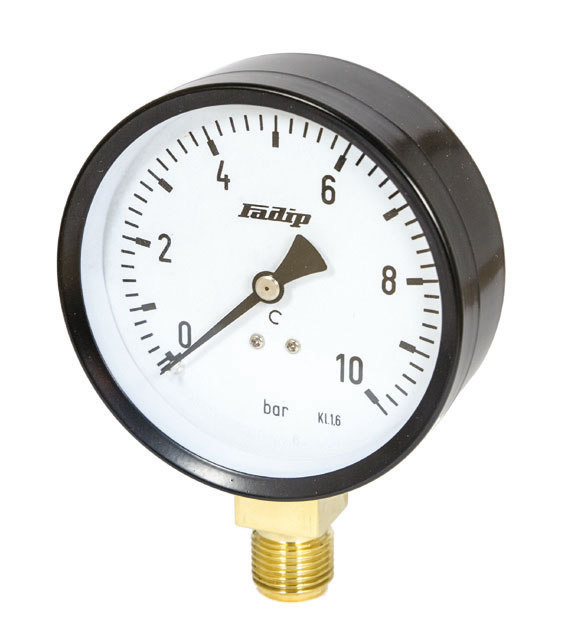

MRČ – manometer lower mount steel case

CONSTRUCTION: EN 837-1
NOMINAL SIZE: 40, 50, 63, 80, 100, 160 mm
ACCURACY CLASS: 1.0%, 1.6%, 2.5%
SCALE RANGE: DN40, DN50 -1…0…60
DN63, DN80 -1..0..600 bar
DN100, DN160 -1..0..1600 bar
PRESSURE LIMITS: -DN40,DN50,DN63 , 3/4x full scale, fluctuating 2/3x full scale , short time -full scale

-DN80,DN100 i DN160 ,full scale , fluctuating 0.9x full scale , short time 1.3x full scale

TEMPERATURES ambient -20 ÷ 60 C
medium 60 C
on special request 150 C
CONNECTION back mount or lower mount, brass thread according to inquiry
CASE steel with black plastification (black powder coated steel)
RING AND LENS plastic or black plastificated steel with glass, or stainless steel with glass
MEASURING ELEMENT bourdon tube C or Helical type, Cu alloy
MOVEMENT brass
DIAL white aluminium, dial marking black
POINTER black powder coated aluminium
INGRESS PROTECTION IP 32 / IP 54 EN 60529
MARKING Ø100 G1/2 (0÷10) MRČ Kl.1,6
ADDITIONAL MARKING -1 pressure gauge with restrictor

/N case and ring stainless steel
/PN with flange
