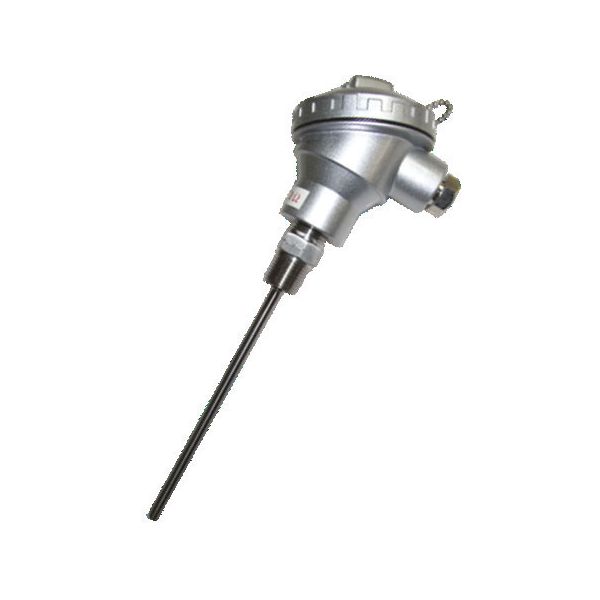

Resistant thermometer
 Measurement of temperature in air and liquids media, where a fast response time is required |
| CONSTRUCTION | DIN 43729 shape B |
| ACCURACY CLASS | DIN 4376 Class A ,Class B |
| SCALE RANGE | 0..200 ⁰C , 0..300 ⁰C, 0..400 ⁰C |
| OPERATING PRESSURE | 20 bar |
| CONNECTION | G1/2, G3/4, M20x1.5 or thread according to inquiry |
| CASE | aluminium |
| INGRESS PROTECTION | IP 54 EN 60529 |
| SENSOR | Ø6, stainless steel 304SS, 1XPt100, 2xPt100, Pt500, Pt1000 |
| PROTECTIVE TUBE | Ø8, Ø9, Ø11 stainless steel |
