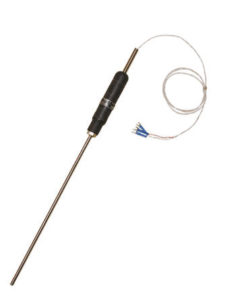

Thermocouple
 Measurement of temperature in air and liquids media up to 1600C |
| CONSTRUCTION | DIN 43729 shape A |
| ACCURACY CLASS | IEC 60584-1:2013 Class 2 ,Class 1 |
| SCALE RANGE | do 1600 ⁰C |
| CONNECTION | G1/2, G3/4, M20x1.5 or thread according to inquiry |
| CASE | aluminium |
| INGRESS PROTECTION | IP 65 EN 60529 |
| SENSOR | single or double, Ø0.35, Ø0.435, Ø0.5, Ø3.0 type S, J, K |
| PROTECTIVE TUBE | Ø8, Ø9, Ø10, Ø15, Ø22 stainless steel |
