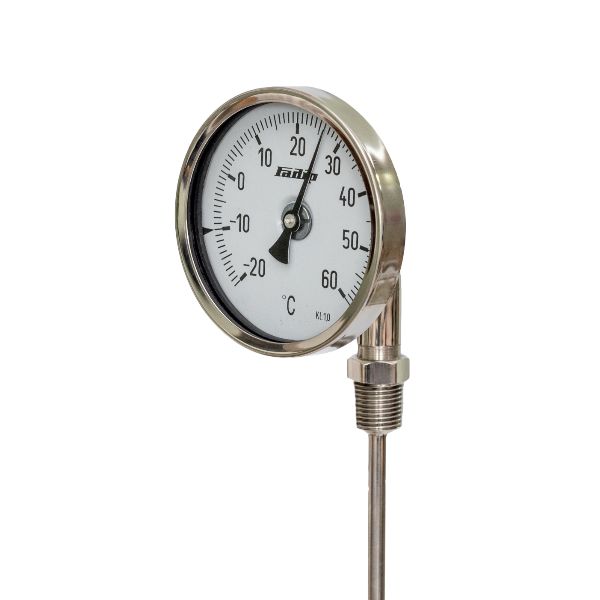

Bimetal thermometers – stainless steel
 Suitable for measuring temperature of aggressive media in agressive ambient TBAN – bimetal thermometers back mount, stainless steel TBRN – bimetal thermometers lower mount, stainless steel TBZN – bimetal thermometers adjustable dial, stainless steel |
| CONSTRUCTION | EN 13190 |
| NOMINAL SIZES | 80,100,160 mm |
| ACCURACY CLASS | 1.0% , 2.0% |
| SCALE RANGE | DN80, DN100, DN160 -20..0..400 C |
| AMBIENT TEMPERATURE | -20 ÷ 60C |
| MEASURING RANGE: PER EN 13190 |
short time scale range per EN 13190 |
| OPERATING PRESSURE | 40 bar without thermowell – on inquiry 60 bar without thermowell |
| CONNECTION | back mount or lower mount, stainless steel fixed or adjustable thread according to inquiry |
| CASE | stainless steel |
| INSERTION DIAMETER | Ø6, Ø8, Ø10, Ø12 |
| RING AND LENS | stainless steel with glass |
| MEASURING ELEMENT | bimetal coi |
| DIAL | white aluminium, dial marking black |
| POINTER | black powder coated aluminium |
| INGRESS PROTECTION | IP 65 EN 60529 |
| MARKING | Ø100 R1/2 (0÷120) TBAN-100/6 Kl.2,0 |
| ADDITIONAL MARKING | -100/6 insertion length/steem diameter |
| PROTECTIVE TUBE | Thread and diameter according to inquiry messing or stainless steel. |
